Print page

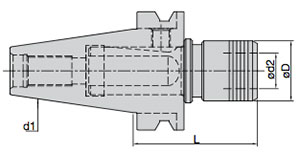

WF - BT
WF - BT. Note: Coolant Thru @ 50 BAR/725 PSI
To add a part to your cart, click the
icon. To request information or a quote click View Cart.
Stock standard
, Non-stock standard
, Non-stock special
Description
d1
Version
Series
DIN taps
ANSI taps
Pipe taps
L
D
d2
Ident No
WF1/BT30
30
inch
1
M3-M12
#0-9/16"
1/8"
62
32
19
6708729
Qty
Add
WF1-IKP-M/BT40
40
inch
1
M3-M12
#0-9/16"
1/8"
66
32
19
117014
Qty
Add
WF1-IKP-M/BT50
50
inch
1
M3-M12
#0-9/16"
1/8"
85
32
19
117015
Qty
Add
WF2-IKP-M/BT40
40
inch
2
M8-M20
1/4-7/8"
1/8-1/2"
81
50
31
117024
Qty
Add
WF2-IKP-M/BT50
50
inch
2
M8-M20
1/4-7/8"
1/8-1/2"
102
50
31
117025
Qty
Add
WF3-IKP-M/BT50
50
inch
3
M14-M33
13/16-1-3/8"
1/2-1"
135
71
48
117035
Qty
Add
