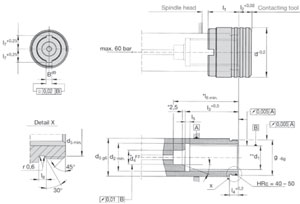

Drilling Chucks ASR
Drilling Chucks ASR
To add a part to your cart, click the
icon. To request information or a quote click View Cart.
Stock standard
, Non-stock standard
, Non-stock special
Description
D
d3
d1
d2
d4
d5
G
l1
l2
l3
l4
l5
l6
l7
l8
B
TR
P21
Ident No
ASR 16-35
35
25
16
20
10
22.5
M24x1
26
10.5
35
6.5
5
45
9.3
1.6
5
16
33400709
6725266
Qty
Add
ASR 20-42
42
32
20
24
12
28.5
M30x1
26
11
45
7.5
5
55
11.3
1.6
5
20
33400710
6725267
Qty
Add
ASR 25-50
50
37
25
30
12
34.5
M36x1
29
13
55
7.5
5
65
14.2
1.6
6
25
33400711
6725268
Qty
Add
ASR 28-52
52
40
28
33
16
36.5
M38x1
29
13
61
7.5
7
73
15.7
1.6
6
28
33400712
6725269
Qty
Add
ASR 32-60
60
45
32
37
16
40
M42x1.5
33
14
69.5
8
7
81.5
17.7
2.5
8
32
33400713
6725270
Qty
Add
ASR 36-68
68
50
36
41
16
46
M48x1.5
37
16
80
8.5
7
92
19.7
2.5
8
36
33400714
6725271
Qty
Add
