Quick Change Adapters WESR ANSI

To add a part to your cart, click the Add to cart icon

icon. To request information or a quote click View Cart.

Stock standard In Stock

, Non-stock standard Not in stock

, Non-stock special Not in stock

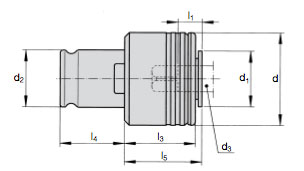

Description	d3		d	d1	d2	Tap	l1	l3	l4	l5	Series	P21	Ident No
WESR2B 1/4" PIPE	14.29	10.69	50	30	31	1/4" pipe	30	31	34	35	2	22602002	6716813 Qty Add
WESR2B 1/2" PIPE	17.46	13.08	50	30	31	1/2" Pipe	30	31	34	35	2	22602004	6716815 Qty Add
WESR2B 3/8" PIPE	17.78	13.49	50	30	31	3/8" Pipe	30	31	34	35	2	22602005	6716816 Qty Add
WESR2B 1/8"LS PIPE	11.11	8.33	50	30	31	1/8" LS pipe	30	31	34	35	2	22602016	6716826 Qty Add
WESR3B 3/4 PIPE	23.02	17.25	72	48	48	3/4" pipe	44	41	55.5	45	3	23602004	6719435 Qty Add
WESR3B 1" PIPE	28.57	21.41	72	48	48	1" pipe	44	41	55.5	45	3	23602007	6719437 Qty Add
WESR3B 3/8" PIPE	17.78	13.5	72	48	48	3/8" Pipe	44	41	55.5	45	3	23602035	6719451 Qty Add
WESR3B 1/2" PIPE	17.46	13.08	72	48	48	1/2" Pipe	44	41	55.5	45	3	23602036	6719452 Qty Add
WESR4B 1-3/8"	28.14	21.11	95	60	60	1-3/8"	71	61	63	68	4	24602001	6720994 Qty Add
WESR4B 1-1/2"	31.32	23.5	95	60	60	1-1/2"	71	61	63	68	4	24602004	6720996 Qty Add
WESR4B 1-5/8"	33.15	24.87	95	60	60	1-5/8"	71	61	63	68	4	24602005	6720997 Qty Add
WESR4B 1-1/4" PIPE	33.34	24.99	95	60	60	1-1/4" pipe	71	61	63	68	4	24602006	6720998 Qty Add
WESR4B 1-3/4"	36.32	27.23	95	60	60	1-3/4"	71	61	63	68	4	24602007	6720999 Qty Add
WESR4B 1-1/2" PIPE	38.1	28.57	95	60	60	1-1/2" Pipe	71	61	63	68	4	24602008	6721000 Qty Add
WESR4B 1-7/8"	38.58	28.93	95	60	60	1-7/8"	71	61	63	68	4	24602009	6721001 Qty Add
WESR4B-3/4" PIPE	23	17.5	95	60	60	3/4" pipe	71	61	63	68	4	24602025	6721009 Qty Add
WESR4B 1"	20.32	15.24	95	60	60	1"	71	61	63	68	4	24602033	6721016 Qty Add
WESR4B 1-1/8"	22.76	17.07	95	60	60	1-1/8"	71	61	63	68	4	24602035	6721018 Qty Add
WESR4B 1-1/4"	25.93	19.46	95	60	60	1-1/4"	71	61	63	68	4	24602037	6721020 Qty Add
WESR4B 1" PIPE	28.57	21.41	95	60	60	1" pipe	71	61	63	68	4	24602043	6721026 Qty Add
